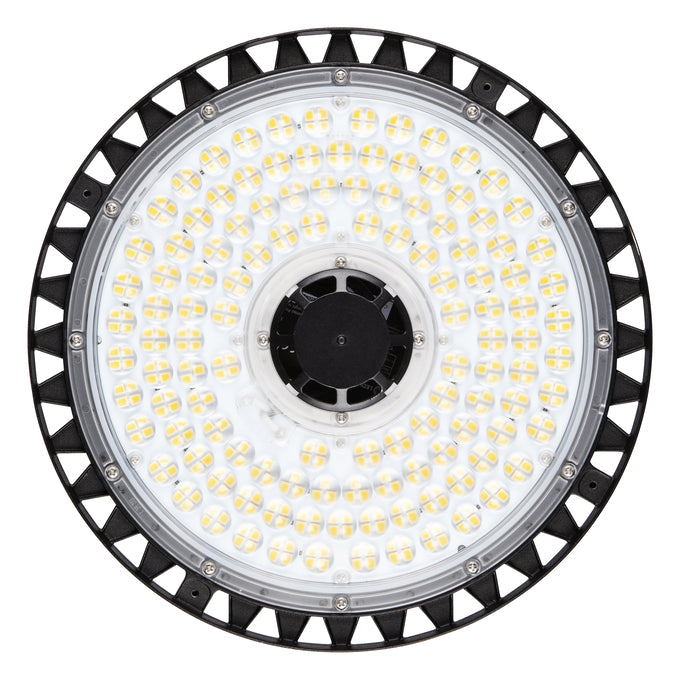

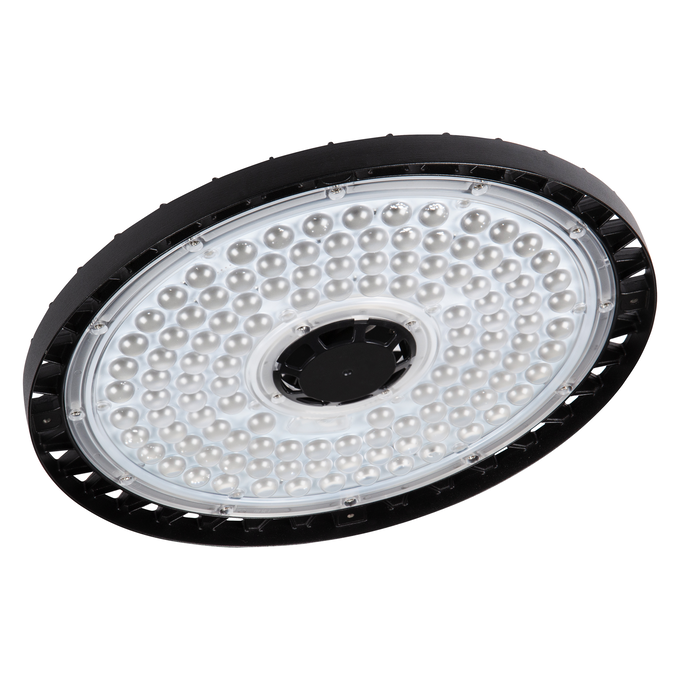

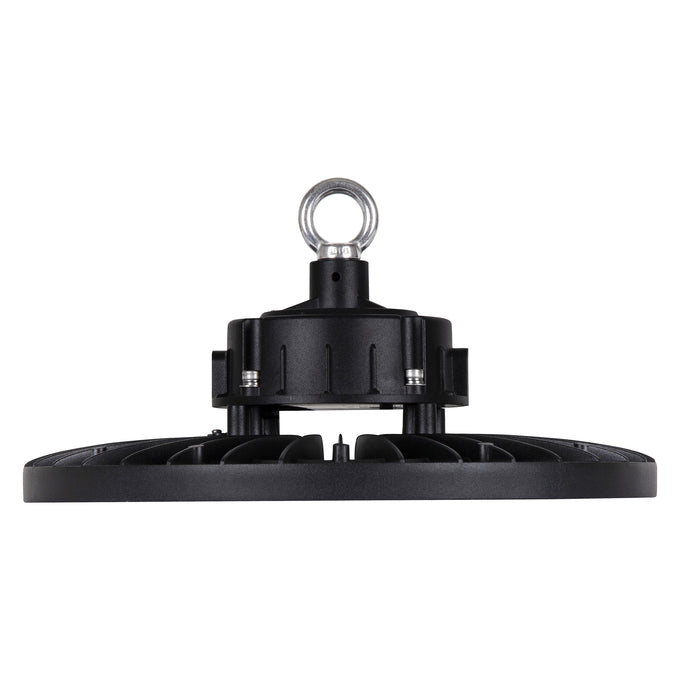

Ledvance LED HighBay Gen4 190W 27000 lumens 4000K IP65 IK10 CRI 80 Aluminum Housing CE RoHS
Ledvance LED HighBay Gen4 190W 27000 lumens 4000K IP65 IK10 CRI 80 Aluminum Housing CE RoHS
Ledvance LED HighBay Gen4 190W 27000 lumens 4000K IP65 IK10 CRI 80 Aluminum Housing CE RoHS
Ledvance LED HighBay Gen4 190W 27000 lumens 4000K IP65 IK10 CRI 80 Aluminum Housing CE RoHS
Ledvance LED HighBay Gen4 190W 27000 lumens 4000K IP65 IK10 CRI 80 Aluminum Housing CE RoHS
Ledvance LED HighBay Gen4 190W 27000 lumens 4000K IP65 IK10 CRI 80 Aluminum Housing CE RoHS

LED HighBay Gen4
-
190W
-
27000 lm
-
4000K
-
IP65
-
5 year warranty

LV692824
Datasheet
267,95
Expected delivery time: 1 - 3 days
Shipped from:
Dutch warehouse
European warehouse
  • Pay later within 30 days
  • Return up to 60 days later
  • Ordered before 7:00 PM, shipped the same day
  • Free shipping on orders over 69,-
Ledvance LED HighBay Gen4 190W 27000 lumens 4000K IP65 IK10 CRI 80 Aluminum Housing CE RoHS
LED HighBay Gen4
-
190W
-
27000 lm
-
4000K
-
IP65
-
5 year warranty
267,95
Expected delivery time: 1 - 3 days
Shipped from:
Dutch warehouse
European warehouse
  • Pay later within 30 days
  • Return up to 60 days later
  • Ordered before 7:00 PM, shipped the same day
  • Free shipping on orders over 69,-
Shopping cart

Your cart is empty

No idea where to start? Try these categories:

Total Including VAT
0,00
  • Pay later within 30 days
  • Return up to 60 days later
  • Ordered before 7:00 PM, shipped the same day
  • Free shipping on orders over 69,-
Description

Ledvance LED lamp 10.5W 3000K 1521 lumens

The Ledvance LED lamp is a reliable LED lighting solution offering 1521 lumens brightness and warm 3000K illumination. You get stable, flicker-free light, high energy efficiency, and long lifespan all in a sturdy aluminum build. Perfect for both professional and residential accent or general lighting projects.

Energy-efficient and durable build

This 10.5W Ledvance LED lamp provides strong performance with low energy consumption. Its aluminum and steel construction ensures durability and excellent thermal management, while the matte gold/brass finish adds a stylish touch to interiors. Thanks to the 50,000 on/off cycle rating, it stands up to frequent switching without reducing lifespan.

Comfortable lighting for multiple settings

Emitting 3000K warm white light with a CRI between 80 and 89, this LED lamp reproduces colors naturally—ideal for living rooms, offices, shops, or hospitality spaces. Its 120° beam angle ensures uniform light distribution perfect for under-cabinet lighting, ceiling fixtures, or decorative accent installations.

Reliable LED power supply and performance

Operating on 220–240V AC at 50–60Hz, the lamp performs consistently even under varied voltage conditions. The high power factor above .93 enhances efficiency, while the Flicker-free technology ensures your eyes stay comfortable during long-time use.

Technical specifications

  • The Ledvance LED lamp 10.5W 1521 lumens 3000K provides energy-saving illumination for a wide range of indoor lighting needs.
  • SKU: LV692824 – Useful for product tracking and easy reordering.
  • Barcode: 4058075692824 – EAN code ensures authentic identification across suppliers.
  • Power consumption: 10.5W – Offers excellent energy efficiency compared to traditional lamps.
  • Luminous flux: 1521 lumens – Ensures strong and bright light output for everyday tasks.
Specifications

General

Product Name
HB P 190W 840 70DEG IP65
Product Family
HIGH BAY GEN 4
Product Code
4058075692824
Guarantee
5 years

Electrical Attributes

Nominal Power
190 W
Voltage Range
220-240 V
Mains Frequency
50-60 Hz
Nominal Current
840 mA
Inrush Current
50.4 A
Inrush Current Time
480 µs
Power Factor
≥ 0.95
Total Harmonic Distortion
< 20%
ECG Output Ripple Current
< 10%
Protection Class
I
Operating Mode
Mains voltage
Circuit Breaker Load
Max Luminaires per B16 Breaker
3
Max Luminaires per C10 Breaker
3
Max Luminaires per C16 Breaker
5

Photometric Attributes

Luminous Flux
27000 lm
Luminous Efficacy
140 lm/W
Color Temperature
4000 K
Light Color
Cool White
Color Rendering Index (CRI)
≥ 80
Standard Deviation of Color Matching (SDCM)
< 5
Beam Angle
70°
Unified Glare Rating (UGR)
≤ 25
Low Flicker
Yes
Photobiological Safety Group
RG1

Physical Attributes

Dimensions
Diameter
321 mm
Height
156 mm
Cable Length
1500 mm
Product Weight
2830 g
Materials
Body Material
Aluminum
Cover Material
Polycarbonate (PC)
Product Color
Black
Housing Color
Black
RAL Color
RAL 9017

Application and Installation

IP Rating
IP65
IK Rating (Shock Resistance)
IK08
Ambient Temperature Range
-30°C to 50°C
Storage Temperature Range
-40°C to 70°C
Application Environment
Indoor
Mounting Type
Suspended/Surface
Mounting Location
Ceiling / Wall
Connection Type
Cable, 3-pole
Dimmable
No
Light Source Included
Yes
Light Source Replaceable
No
Glow Wire Test
850 °C

Lifespan

Lifespan L70/B50 at 25°C
80000 h
Lifespan L80/B10 at 25°C
50000 h
Lifespan L80/B50 at 25°C
50000 h
Lifespan L90/B10 at 25°C
35000 h
Number of Switching Cycles
200000

Certifications and Standards

Standards
CE, CB, ENEC, TÜV SÜD, EAC, EPD
Limited Surface Temperature 'D Sign'
Yes
Ball Shot Safe
No
EPD
LEDV-00006-V01.01-EN

Logistical Data

Packaging
Packaging Unit
1 piece (Shipping box)
Dimensions (L x W x H)
368 mm x 368 mm x 168 mm
Gross Weight
3483 g
Volume
22.75 dm³
