Power Adapters/Drivers

The Role of a Power Adapter or LED Driver

A power adapter is more than a simple voltage converter. The driver precisely regulates the electrical current to the LEDs, ensuring optimal performance and achieving their maximum lifespan. Without the correct driver, direct connection of LED lighting to the power mains is not possible, which may result in damage to the LEDs or even dangerous situations.

Constant Voltage vs. Constant Current Drivers

Within the world of LED drivers, there are two main types, depending on how they regulate power to the LEDs. The appropriate choice depends on the type of LED lighting you use.

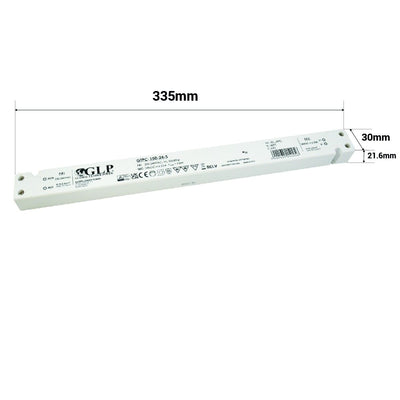

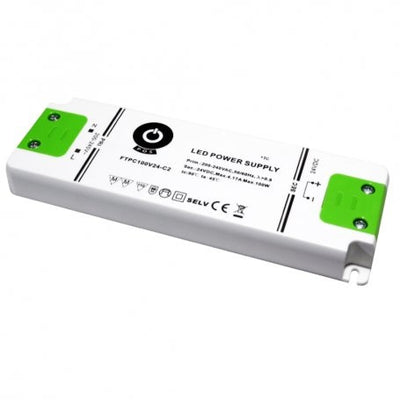

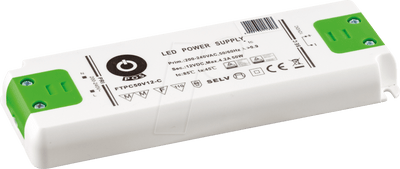

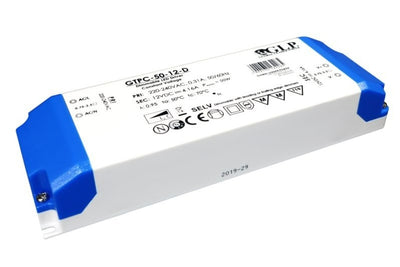

Constant Voltage Drivers (CV)

Constant voltage drivers, often referred to as CV drivers, supply a fixed output voltage (for example, 12V or 24V DC). They are commonly used for LED strips and modules that already contain a current-limiting resistor. It is important that the voltage of the driver exactly matches the required voltage of the LED strip.

Table: Required Voltage for LED Strips

Constant Current Drivers (CC)

In contrast to CV drivers, constant current drivers (CC drivers) supply a constant current (expressed in milliamps, mA). These are especially suitable for specific LED modules and fixtures that require a fixed current for proper operation. With this type of driver, it is important that both the current (mA) and the voltage range (Volts) match the specifications of the LED.

Dimmable LED Drivers: An Explanation of Dimming Systems

To adjust the light intensity of LED lighting, special dimmable drivers are needed. Various dimming methods are available, each with unique features and compatibility requirements.

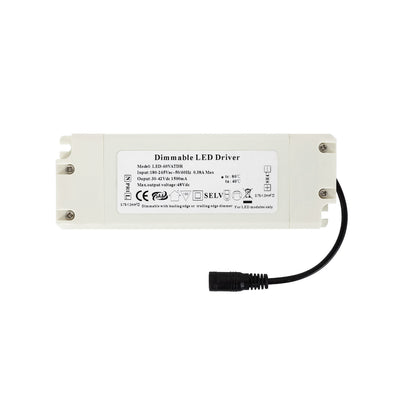

Phase Cut Dimmers (Triac)

Phase-cut dimmers, often referred to as Triac dimmers, are the most common dimmers in residential and commercial settings. They work by cutting off a part of the AC sine wave, thus regulating the voltage and the light intensity. For LED lighting, a ‘trailing edge’ dimmer is almost always required, since ‘leading edge’ dimmers can cause issues.

When using phase-dimmable drivers, pay attention to the following points:

• Minimum load: Many dimmers and drivers have a minimum load requirement in Watts. If the total load of the connected LEDs is too low, this can cause flickering or improper functioning of the dimmer. Always check the specifications of both the dimmer and the driver.
• Compatibility: Not every Triac dimmer is suitable for LEDs. Always choose dimmers specifically designed for LED lighting to avoid compatibility issues such as buzzing, flickering, or failure to dim.

[Image: Schematic representation of phase-cut dimming]

Other Dimming Methods

For professional or more advanced installations, there are other dimming systems available that provide more precise or complex control:

• 0-10V Dimming: A robust analog dimming method often used in larger projects. Brightness is controlled via a control signal between 0 and 10 Volts.
• DALI (Digital Addressable Lighting Interface): This is a digital lighting control protocol, allowing individual fixtures or groups of fixtures to be controlled and dimmed separately. It offers a high degree of flexibility and control.
• Push Dim: A simple dimming method where the brightness is adjusted by briefly pressing a push button.

Selecting the Right Power Adapter

Choosing the correct power adapter is crucial for the safety and optimal functioning of your LED lighting. Consider the following aspects:

The Voltage of the LED Lighting

Ensure that the driver's output voltage (e.g., 12V or 24V) matches the required voltage of your LED lighting. Using the wrong voltage may cause overheating or damage to the LEDs.

The Required Power (Wattage or Ampere)

Calculate the total power consumption of your LED lighting. This is often stated in Watts per meter (for LED strips) or Watts per fixture. Add up the total wattage of all connected LEDs and include a safety margin of at least 10-20%. Then choose a driver that can supply this total calculated power.

An example calculation:

• Suppose you have a 5-meter long LED strip, consuming 9.6 Watts per meter. The total power is \(5 \text{ meters} \times 9.6 \text{ W/meter} = 48 \text{ W}\).
• Add a safety margin of, for example, 15%: \(48 \text{ W} \times 1.15 = 55.2 \text{ W}\).
• You then need a driver with a power of at least 60 Watts.

For constant current drivers, choose based on the required current (mA) and the voltage range (V).

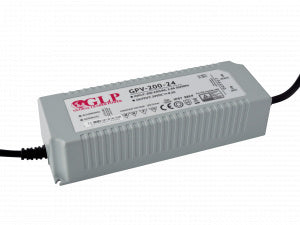

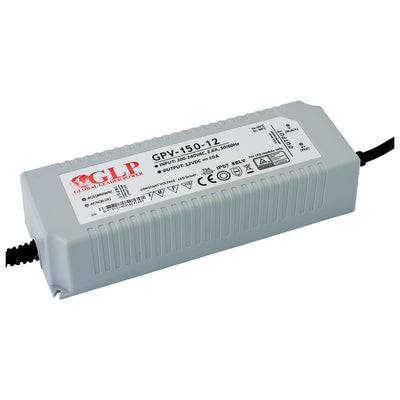

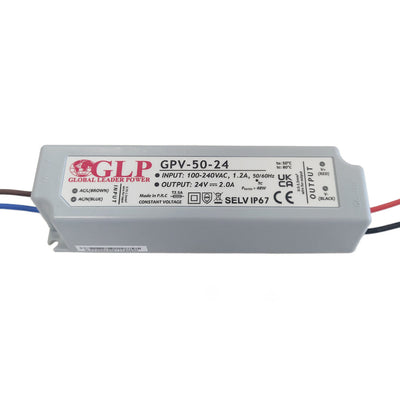

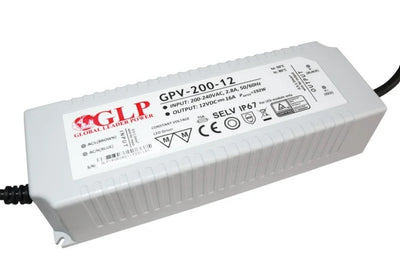

The IP Rating for the Installation Location

The IP rating (Ingress Protection) indicates the degree of protection against moisture and dust. This value determines where the driver can be safely installed.

Table: IP Ratings and Application Areas

Compatibility with Dimmers and Other Systems

If dimming is required, make sure that the dimmable driver is compatible with your chosen dimmer. Check the specifications of both products to avoid problems. For larger or more complex projects, consider the benefits of 0-10V, DALI, or Push Dim systems.

Placement and Heat Dissipation of the Driver

LED drivers generate heat. For optimal lifespan, it is crucial that the driver can adequately ventilate. Place the driver in a location where heat can escape and avoid covering it with insulating material. Take into account the ambient temperature; high temperatures significantly reduce the lifetime of the driver.

[Image: Illustration of a correctly placed driver with attention to ventilation]

Practical Questions About Power Adapters

When installing LED lighting, specific questions sometimes arise. Here you will find answers to common scenarios:

• Is it possible to connect multiple LED strips to a single driver? Yes, this is possible. Ensure that the total power consumption of all connected LED strips does not exceed the maximum output of the driver. Always connect the LED strips in parallel to the driver to equally distribute the voltage.
• What to do about voltage drop with long LED strips? For long LED strips, especially with 12V systems, voltage drop can occur. This results in less bright light at the end of the strip. Solutions include: using a 24V LED strip (less voltage drop over the same length), powering the strip from multiple points, or using multiple smaller drivers distributed throughout the installation.
• Why does my LED light flicker when dimmed? This is often due to incompatibility between the dimmer and the driver, or because the minimum load of the dimmer/driver has not been reached. Check whether both components are suitable for LED, and whether the total power of the connected LEDs exceeds the minimum load. In some cases, a bypass capacitor can improve stability.
• Is grounding a driver necessary? This depends on the type of driver and installation environment. Always follow the manufacturer's installation instructions and applicable electrical safety codes. Drivers with a metal housing generally need to be grounded.

By considering these aspects carefully, you establish a solid foundation for a safe, energy-efficient, and durable LED lighting installation with stable and reliable light output.
