Spectrum

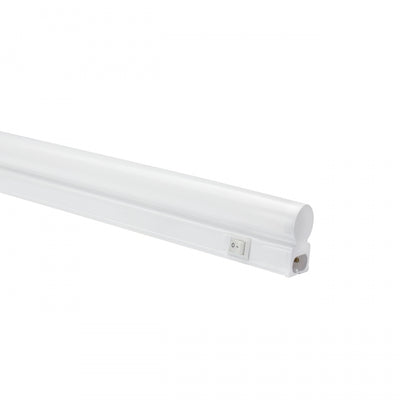

Spectrum LED Cabinet Switch T5 900mm
-
10W
-
1200lm
-
6000K
8,95
Batten 90 cm
A 90cm LED batten, also known as an LED fixture or light line, is a slim and modern fixture with an integrated LED light source. This compact version of a traditional fluorescent fixture features a sleek design and provides immediate light over a specific area. Its 90 centimeter length makes it perfect for spaces where a longer light line won’t fit, but you still need plenty of illumination. You’ll often see them in workshops, storage rooms, garages, and smaller business premises.
1 product
Choosing a 90cm LED batten offers advantages
Switching from traditional fluorescent fixtures to a 90cm LED batten brings several practical benefits. These advantages make the LED batten a solid investment for those looking for a modern, low-maintenance, and energy-efficient lighting solution.
- Energy-efficient operation: LED battens consume significantly less energy than their traditional fluorescent counterparts. For example, a 90cm LED batten of 12W can replace a 30W fluorescent tube, which directly leads to noticeable savings on the electricity bill. This efficiency is an important consideration in both residential and commercial settings.
- Longer lifespan and reduced maintenance: With an average lifespan of 30,000 to 50,000 operating hours, LED battens last much longer than fluorescent lamps. This means you need to replace lamps less frequently and maintenance costs drop significantly, which is especially beneficial in environments where lighting is on continuously.
- Instant and flicker-free light quality: Unlike some older fluorescent fixtures, which may start with a delay or flicker, LED battens provide full brightness immediately after being switched on with no flicker whatsoever. This contributes to a more comfortable and productive working environment.
- Robust design and durable material: LED battens are often made from sturdy materials such as polycarbonate or aluminum, making them shock-resistant and durable. This is important in environments where the lights need to withstand occasional bumps.
- Environmentally friendly choice: LED technology contains no harmful substances like mercury, making these lights a more eco-friendly option and simplifying recycling.
Essential specifications for 90cm LED battens
When selecting the right 90cm LED batten, specific technical details matter. These determine the suitability of the batten for your situation and the expected performance. Below is an overview of the most relevant specifications:
| Specification | Explanation and importance | Recommendation for 90cm LED batten |
|---|---|---|
| Wattage | Indicates the power consumption. Lower wattage with the same lumen output means higher efficiency. | Usually between 10W and 15W for similar light output to a 30W fluorescent tube. |
| Lumen (lm) | The measure of total visible light emitted by the source. The higher the lumen value, the brighter the light. | Depending on the application: 1000-1500 lumens for general lighting, higher for workspaces. |
| Light color (Kelvin, K) | Determines the color temperature of the light, ranging from warm white to daylight. | Warm white (2700K-3000K): for ambiance in garages/storage rooms. Neutral white (4000K): for workspaces and functional light. Daylight white (6000K-6500K): for detailed work or where high alertness is desired. |
| IP rating (Ingress Protection) | This two-digit code indicates protection against dust and water. The first digit is for dust, the second for water. |
IP20: For dry, dust-free indoor spaces only. IP44: Suitable for damp rooms like garages or under a canopy. IP65: Dust and water jet proof, for damp and dusty environments like workshops. |
| Color Rendering Index (CRI) | A measure of how natural colors appear under the light (0-100). A higher CRI is better. | CRI > 80 is generally sufficient for most applications; CRI > 90 for areas where color accuracy is important. |
| Dimmable | Indicates whether the batten’s brightness can be adjusted. | Check if the batten is dimmable if you want adjustable brightness. Often requires a compatible LED dimmer. |
If you are unsure about which IP rating you need, you can always opt for a higher rating to ensure sufficient protection, especially in moisture-prone environments.
Practical considerations for installing a 90cm LED batten
Installing a 90cm LED batten is generally straightforward, but carefully following the instructions and safety regulations is very important. Most fixtures come with mounting brackets and fixing materials. (Reference: blog article about linking LED fixtures in series)
Easy installation on various surfaces
Most 90cm LED battens are designed for surface mounting. This means they can be screwed directly onto a ceiling or wall. Often, special mounting clips are included to streamline installation. For installers, it is important that the mounting points are flexible, minimizing the need to adapt to existing hole patterns.
When replacing an old fluorescent fixture, you may need to adjust the wiring. Modern LED battens are often connected directly to mains power (230V), with no need for a separate ballast or starter. This eliminates potential points of failure and further increases energy efficiency. Before any electrical installation, it is essential to disconnect power.
Loop-through capability
Some 90cm LED battens feature loop-through capability, meaning several fixtures can be connected in series to a single power point. This is particularly useful for creating a long, continuous line of light in, for example, a hallway, warehouse, or workshop, without needing a separate power point for each fixture. Always check whether the batten has this feature and what the maximum number of linked fixtures is.
Application areas of 90cm LED battens
The versatility of the 90cm LED batten makes this lighting solution suitable for a wide range of applications. The compact length, combined with efficient light output, makes it an ideal choice for various functional and compact spaces.
Common applications include:
- Garages and parking areas: The robust construction and bright, diffuse light distribution contribute to a safer environment for vehicles and people.
- Workshops and hobby rooms: Good light quality and high CRI provide ample and accurate lighting for manual work.
- Storage spaces and utility rooms: Offer efficient basic lighting, even in smaller or less accessible areas.
- Small commercial spaces: Such as restaurant kitchens, laundry rooms, or compact store aisles where a reliable, unobtrusive light source is needed.
- Basements and attics: Where irregular structures or limited heights often make it difficult to install larger fixtures.
The 90cm LED batten offers a functional and durable lighting solution that meets the demands of modern installations, with a focus on efficiency and ease of use. Its long lifespan and minimal maintenance requirements make it a reliable choice for the long term.
